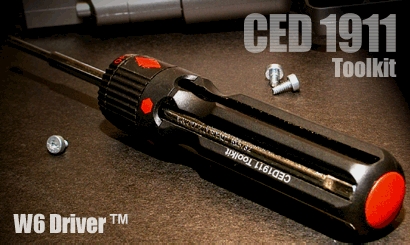

CED 1911 Tool Kit

5/32" Pin Punch Remove and install the firing pin. Remove and install the Mainspring housing retaining pin. Remove the hammer axis pin. Remove Magazine base pads

Small Screwdriver .150" Remove and install the magazine catch. Some sight adjusting screws such as the windage screw on the Gold Cup rear sight.

Medium Screwdriver .210" Fits the adjusting screws on most rear sights including Bo-mar, LPA, Millett, and Gold Cup

Large Screwdriver .325" For grip screws. Note: We found that there were two distinct widths of grip screws on the market. Some have slots around .039" wide, while others .050". Unfortunately, we could not accommodate both with a perfectly sized blade, so we have used the smaller size.

3/32" Hex Drive Fits most extension buttons screwed onto magazine catches and aftermarket grip screws with hex heads. Can also be used to push out the sear axis pin and depressing the detent to fit the safety catch.

5/32" Hex Drive Fits several brands of two piece recoil spring guide rods.
